As many of you know, I have been revamping my dining room and sharing the progress and plans with you as I go.  I shared my new dining table a few weeks back, and I am here today sharing my new DIY Dining Bench! Well… Make that benches. 😉  Check them out!

DIY Dining Benches by Shanty2Chic

Dining Room by Shanty2Chic

Aren’t they fun??  I think they compliment the legs of the table without fighting with the design.  I debated originally about going with 10 chairs rather than benches, but with 5 kids under the age of 12, you just can’t beat a dining bench.  As always, I will walk you through the entire build here, and you can also download the FREE printable plans by clicking HERE or the button below!

Print DIY Bench Free Plans

Here we go.  I must warn you… I share lots of pics in this post.  I went camera/photo happy on this one so there.

I worked with Osborne Wood Products to design the legs for these benches.  I love how they turned out.  You can find them on Osborne’s site HERE or on Amazon HERE!

Shanty2Chic Bench Leg

I used knotty pine for my legs.  On Osborne’s site, these run $17.99 a piece, and shipping for 3 of them to my area is around $20.  That would put the total cost of 3 legs to my house $75, which is GREAT.

Your first step is building out the base of these legs.  You will basically piece some boards together to create a solid feet for the legs.  This gives the bench a ton of stability and I love the finished look as well.

I used my Ryobi 16G AirStrike Finish Nailer for this project.  I would recommend it over the brad nailer for this project as the nails are a bit beefier.  Also, be sure to use wood glue on all of your joints.  I used Gorilla Wood Glue for mine, like always. 😉

Start by making the 2×3 cuts that will be the same width as the leg.  Each leg will have two of these cuts.

Cut wood size of bench leg

Next, glue and nail those pieces to the legs.  I used 2″ finish nails on this part.

Gorilla Wood Glue for bench leg

Nail sides to bench leg

Each of the legs should look like this.

Bench Leg how to

Before making the next cut, measure this length.  We do list the length in our plans, but wood can run different widths, so it’s always good to measure before making your cuts.

Measure before cutting

You will cut two 1×2 at this length, and attach them using wood glue and nails.

Gorilla Wood Glue on bench leg

Finish nailer to build bench

wood on bench leg

Once you have both nailed on, the leg should look like this.

bench leg diy

Next, you will cut two 2×3 for each foot.  These will be attached using pocket holes and pocket hole screws.  I used my Kreg Jig K5 for this part.  I had to make adjustments to get the pocket holes in a good place.  Not sure if it’s technically correct, but it worked like a charm. 🙂

I set the drill guide to 3/4″ rather than 1.5″, but adjusted the clamp of the jig to 1.5″.

Setting jig for pocket holes

That allowed me to make the pocket holes to stay on the wood and they looked like this.

pocket holes on leg support

Next, I added wood glue to the end that attaches to the leg…

wood glue on leg support

And, I used my new Kreg Bar Clamp (LOVE) to hold the piece in place.

Kreg Bar Clamp

I used 2.5″ pocket hole screws to attach those pieces.

pocket hole screws in bench leg

And the bottom looked a bit like this!

Base of bench leg pocket holes

The next pieces you will add are the 1×2 side pieces.  Again, measure before making the cuts.  I used wood glue and finish nails on this part as well.

Building the bench leg

The final pieces you will add to these cute legs are the feet.  These are just 1×2 cut to fit the bottom of the leg.

wood glue

Ryobi Airstrike Nailer

Bam.  You got yourself a leg… Or 6.

Base of Bench Leg

Time for the tops!  This part is easy too, with the Kreg Jig.

I started by creating the apron of the bench.  This part will use 1.5″ pocket holes and 2.5″ pocket hole screws.

Wood glue for apron joints

Kreg Driver on Bench Apron

pocket holes on apron

Bench Apron

Once you have the outside of the apron looking like a big rectangle, you will add the smaller 1×2 to the inside.  These will hold the legs in place.

Iused 3/4″ pocket holes and 1.25″ pocket hole screws for these smaller pieces.

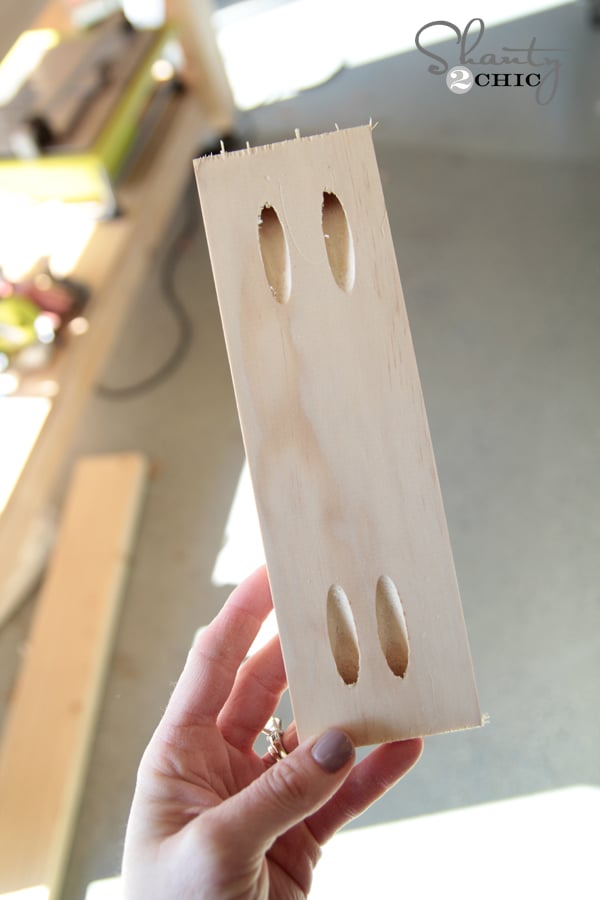

pocket holes on bench leg supports

It is a tight fit on this part, and I had the best luck using my Ryobi 18V right angle drill with the smaller 3″ Kreg driver bit.  I don’t use either of these tools a ton, but when you need them, you need them.  There are just some projects that will only allow for these, and I love having them handy when I need them!

Ryobi Right Angle Drill

The middle supports will look like this…

Attach leg supports to bench apron

Next, I created the plank tops.  I did this by using my Kreg Jig with 3/4″ pocket holes and 1.25″ pocket hole screws.  I did not use glue between my planks on this part.  It is strong enough with the pocket hole screws and it can get really messy making staining a booger.

kreg pocket hole screws

The first 3 long planks will be attached like this.  You can see the pocket holes on one side of each of my outside pieces.  Then, you will attach those to the wider middle piece using the screws.

Attach bench top with pocket hole screws

Then, I attached my breadboards.  I measured the exact width of those three boards to get the length of my breadboards.  These are attached through the pocket holes on the ends of the three planks and into the breadboards.

Assemble bench top

Building the bench top

Now I attached the planks to the apron using wood glue and finish nails.  I went through the top of the planks and down into the apron.

wood glue on apron

Nail bench top to apron

The final step is setting those legs in place.  I put wood glue on the top of each leg and set it into place.  Then, I used 2″ finish nails through the supports and apron and into each leg.  And naturally, I forget a pic of this part.  #brainfart.  It’s simple though!  Just glue and nail and done.

I used the same stain on the benches that I used on the DIY Dining Table.  It can be found at the Home Depot.  It’s called Varathane wood stain and the color is Ash.  I love the deep almost black undertones of it, even though it is a brown stain.  It only takes one coat and it dries in under an hour.  Love it.

Varathane Wood Stain Ash

I used Varathane Triple Thick in Satin for the top coat.  This has almost no sheen to it, but just enough to give it a smooth finish.  I LOVE THIS STUFF.  It dries in 2 hours and doesn’t show brush strokes.  It has the thickness of 3 coats in one.  I have used it a few times now and I love the outcome.

That’s it!  You have a triple leg bench.  I used white wood for all of my boards making the cost of lumber for each bench under $40.  Teamed with the cost of the legs, you can build each bench for around $115.  Not only does that beat the heck out of major brand’s benches, you can’t find one in this style yet.  I am perfectly pleased!  Check out the progress I am making in the room!

Dining Room by Shanty2Chic

DIY Dining Benches by Shanty2Chic

DIY Dining Table and Benches

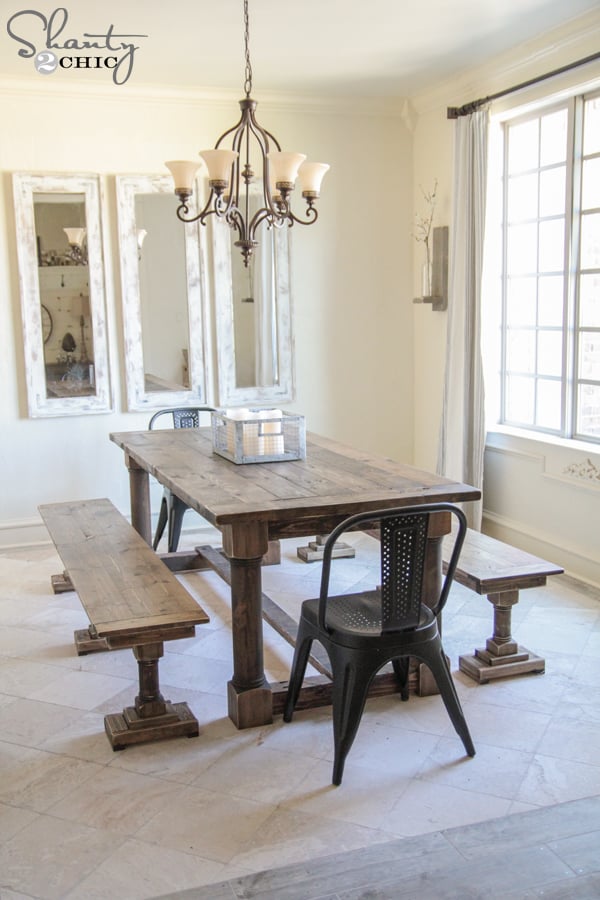

DIY Dining Set by Shanty2Chic

Here are the other projects to keep you busy!DIY Turned Leg Dining Table

DIY Dining Table

Shanty2Chic DIY Sideboard

DIY Sideboard

Floating Shelves IG

DIY Floating Shelves

Ashley and Whitney Blog post signature
