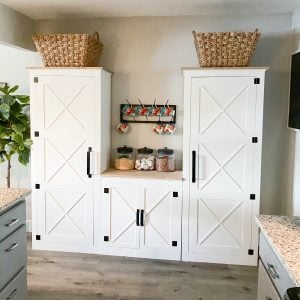

Looking for more kitchen storage? 🥫 Everybody needs a good pantry cabinet! In this tutorial, we’ll show you how to build a DIY pantry cabinet with free woodworking plans. This budget-friendly pantry is perfect for small kitchens, rental homes, or anyone who needs a little extra storage space.
We built this one for our sister’s rental home. The house had plenty of kitchen cabinets but no pantry. With five kids, she needed more storage for dry goods, small appliances, and dishes. This DIY cabinet pantry was the perfect solution, and now I want one for my own house too!
👉 Download the free printable pantry cabinet plans at the bottom of this post.
👉 Watch the step-by-step video tutorial by hitting play below.
You can download and print the FREE PLANS by jumping to the bottom of the post and clicking the link!
Jump to Free Plans!Table of Contents
Why Build a Pantry Cabinet?
A DIY pantry cabinet gives you:
- Custom size to fit your space.
- Solid wood construction for durability.
- Adjustable shelves for flexible storage.
- A design that works in kitchens, laundry rooms, or garages.
This is more than just a food pantry. It’s a versatile storage cabinet that you can use anywhere you need organization.
Tools and Supplies
Tools
- Miter Saw
- Table Saw
- Drill/Driver
- Kreg Jig (pocket holes)
- Brad Nailer
- Sander
Supplies
- 3/4” Hardwood Plywood (box, shelves, drawers)
- 1/2” Hardwood Plywood (door panels, drawer bottoms)
- 1/4” Hardwood Plywood (cabinet back)
- 1×3 and 1×4 Boards (face frame)
- Edge-Glued Panel (top)
- Bender Board or 1/4” Craft Boards (door trim)
- Wood Glue, Pocket Hole Screws, Brad Nails
- Drawer Slides, Hinges, Cabinet Pulls
- Stain or Paint
How to Build a DIY Pantry Cabinet (Step by Step)
Step 1: Build the Pantry Box with Plywood
- Use 3/4” hardwood plywood for the sides, bottom, and shelves.
- Cut your pieces to size and drill shelf pin holes (if using adjustable shelves) before assembly.
- Attach the shelves with wood glue and 1 1/4” pocket hole screws through 3/4” pocket holes.
Pro Tip: Watch our video for tips on adding shelf pins for adjustable storage.
Step 2: Add the Back Support Board
- Cut a support board for the back top section.
- Drill 3/4” pocket holes on the top and sides.
- Secure it with wood glue and 1 1/4” pocket hole screws.
- This board will later anchor the cabinet securely to the wall.
Step 3: Build and Attach the Face Frame
- Cut 1×3 boards for the sides and top, and a 1×4 for the bottom.
- Drill pocket holes and assemble into a frame with glue and screws.
- Attach the face frame flush to the cabinet with pocket hole screws.
Step 4: Build the Cabinet Doors
- Use 1/2” hardwood plywood for the back panel.
- Create trim with bender board (found in the landscaping section) or 1/4” craft boards.
- Rip diagonal trim boards to 1.5” wide, cut to fit, and attach with glue and brad nails.
- Finish with a decorative edge-glued panel for the cabinet top.
Step 5: Add the Back Panel
- Use 1/4” hardwood plywood for the cabinet back.
- Nail or staple it into place.
- Optional: Install this panel after drawers to make the process easier.
Step 6: Install Adjustable Shelves
- Cut shelves from 3/4” plywood.
- If using shelf pins, cut them about 1/4” shorter to allow for clearance.
- Otherwise, attach fixed shelves with pocket holes and screws.
Step 7: Build and Install Drawers
- Cut drawer supports from 3/4” plywood and attach to each side of the cabinet.
- Build drawers using 3/4” plywood (or 1×4 boards) for the sides and 1/2” plywood for the bottom.
- Assemble with wood glue and brad nails.
- Install drawer slides onto supports and add the drawers.
Finishing Touches
Add your choice of drawer pulls, door hinges, and cabinet hardware to complete the look. Then finish your pantry cabinet with stain or paint to match your kitchen.
Free DIY Pantry Cabinet Plans
Ready to build your own? 🎉
👉 [Download the free printable pantry cabinet plans here!]
These DIY pantry cabinet plans are beginner-friendly and fully customizable. With just plywood, basic boards, and a few tools, you can create your own affordable kitchen storage solution that looks like a high-end custom piece.
DIY Pantry Cabinet
The cutest modular kitchen pantry system! CLICK HERE to print the FREE PLANS!
Instructions
- The body of this pantry is constructed with 3/4” plywood. Cut each long side as well as the bottom and middle shelves. If you are adding shelf pin holes to your sides, be sure to do that before attaching the shelf boards on this step. You can check out our video for tips on adding shelf pins to your pantry cabinet. Attach the shelf boards to the sides using wood glue and 1.25” pocket hole screws through 3/4” pocket holes.
- Now, attach the back support board to the top and back of the cabinet. This board will be used to secure the cabinet to the wall onces it’s finished. Add 3/4” pocket holes along the top and sides of this board. Attach it to the side boards using wood glue and 1.25” pocket hole screws through the 3/4” pocket holes. The top pocket holes will be used to attach the top in a later step.

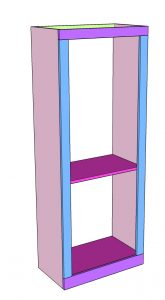

- Build the face frame next. The top and side boards are 1×3 and the bottom board is a 1×4. Add 3/4” pocket holes on the top and bottoms of the side boards. Also add 3/4” pocket holes along one long side of the top board. Attach all boards to create the frame using wood glue and 1.25” pocket hole screws.
- Attach the face frame to the front of the cabinet using wood glue and 1.25” pocket hole screws through the pocket holes on the inside of the cabinet and into the face frame. Make sure the face frame is flush with the top and sides of the cabinet.
- Now it’s time to build the door! The back of the door is 1/2” hardwood plywood. The trim on the front of the door is called bender board. These boards can typically be found in the outdoor landscaping section of the hardware store. If you can’t find them, you can also use 1/4” craft boards for the trim part. I used my table saw to rip the vertical and horizontal boards first. Then, I cut each one to size and attached them using wood glue and 5/8” brad nails.
- The diagonal boards are ripped to 1.5” wide each. I didn’t add dimensions for the diagonal boards because these are easiest to measure by holding in place and marking the cut with a pencil. Attach them the same way using glue and nails.

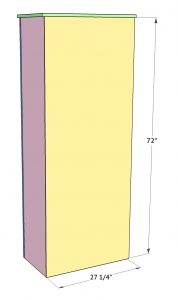

- The top of the cabinet is a edge glued panel. These come in different sizes and are ready to stain or paint. Attach the top using wood glue and 1.25” pocket hole screws through the pocket holes at the top of the cabinet and into the wood panel.
- The back of the pantry is 1/4” hardwood plywood. Cut this piece to size and attach it to the back using 3/4” brad nails or staples. You can also add this board after installing your drawers to make that part even easier!
- The shelf boards will all be created with 3/4” hardwood plywood. I show 3 in the cut list, but you can make less or more depending on your storage needs. If you did not add shelf pin holes to your cabinet, you can attach the shelves using 1.25” pocket hole screws through 3/4” pocket holes on the bottom of each shelf board. If you did use shelf pin holes, you will want to cut these boards about 1/4” shorter to allow room for the shelf pins on each side.
- Next, build the supports for the drawers. This is also created with 3/4” plywood. Use a table saw to cut these pieces to size. Add 3/4” pocket holes to the top of the top board first and attach them to the sides using wood glue and 1.25” pocket hole screws. You will repeat this step on the opposite side of the cabinet as well. Add 3/4” pocket holes to the top and bottom of the vertical board and attach it in place using wood glue and 1.25” pocket hole screws. Again, repeat this on the opposite side of the cabinet. These will be the boards your drawer slides attach to.

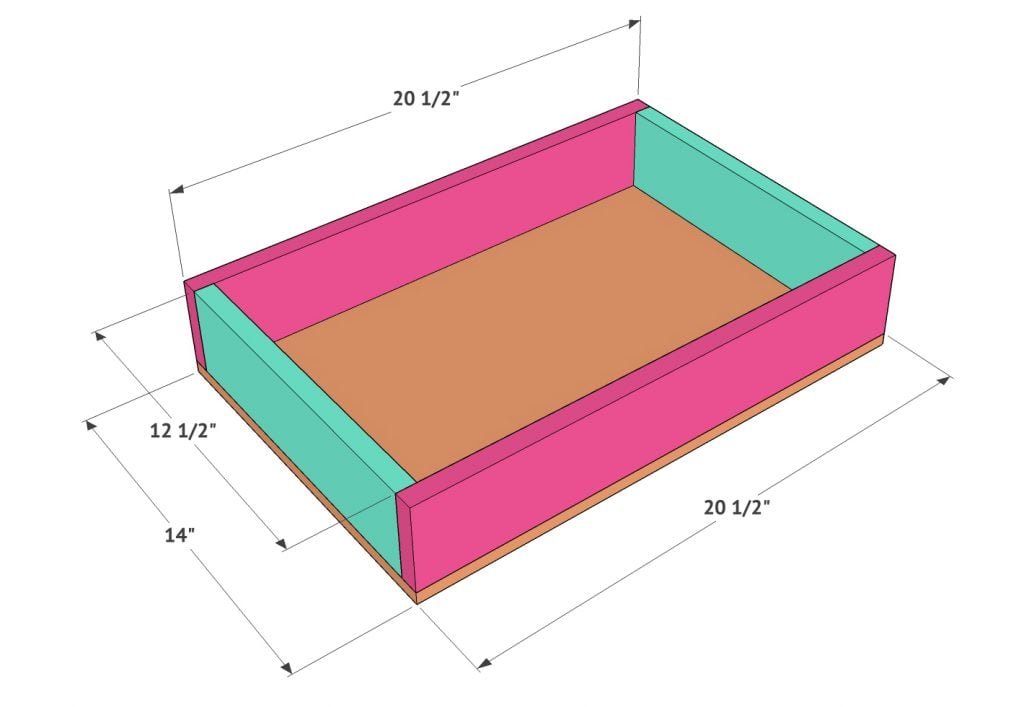

- The final step is creating your drawers. I used 3/4” plywood for the sides of the drawers. You can also use 1×4 boards. Attach each corner using wood glue and 1.25” brad nails to create the box. The base of each drawer is 1/2” plywood. Attach it to the box using wood glue and 1.25” brad nails. Refer to our video for tips on installing the drawers into the pantry!
